Asus H81M-K 4th Gen Motherboard

Asus H81M-K 4th Gen Motherboard
Asus H81M-K 4th Gen Motherboard
Asus H81M-K 4th Gen Motherboard
Asus H81M-K 4th Gen Motherboard
-7 %
Asus H81M-K 4th Gen Motherboard
Asus H81M-K 4th Gen Motherboard
Asus H81M-K 4th Gen Motherboard
Asus H81M-K 4th Gen Motherboard
Asus H81M-K 4th Gen Motherboard
  • Stock: In Stock
  • Brand: Asus
EMI starts at 3,058৳/month. View all 29 banks EMI plans >
8,900৳
9,550৳
Ex Tax: 8,900৳

Features

    • Model: H81M-K
    • Intel Socket 1150 for 4th Generation Core i7/i5/i3/Pentium/Celeron Processors
    • 2 x DIMM, Max. 16GB, DDR3 Non-ECC, Un-buffered Memory
    • New UEFI BIOS & USB 3.0 Boost (UASP Support)
    • AI Suite 3-One-stop access to innovative ASUS features
Specification
Basic Information
Audio Realtek ALC887/897 8-Channel High Definition Audio CODEC - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Chipset Intel H81
Form Factor uATX Form Factor 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
Supported CPU Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Ports & slots

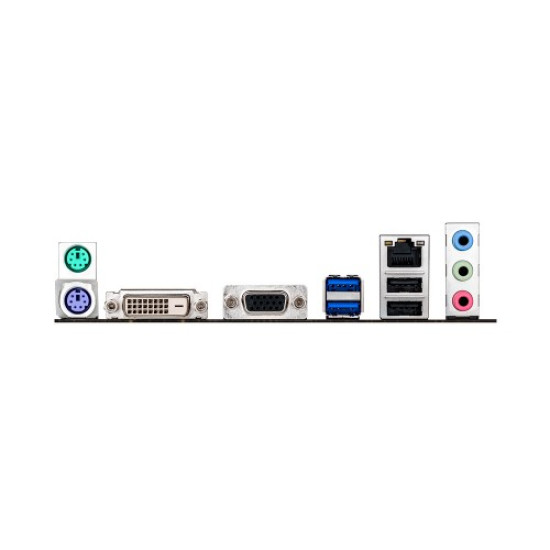

Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Clear CMOS jumper(s)
Supported
Supported Storage Intel H81 chipset : 2 x SATA 6Gb/s port(s), yellow, 2 x SATA 3Gb/s port(s), dark brown, Supports Intel Rapid Start Technology, Intel Smart Connect Technology
Expansion Slots
PCI 1 x PCIe x16 2 x PCIe 2.0 x1
Memory Spec
Slots 2 x DIMM
Type DDR3
Supported Memory 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory Max. 16GB
Others
Special Features ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Slot
Connectivity
Audio Jack 3 x Audio jack(s)
LAN Port Realtek 8111G, 1 x Gigabit LAN Controller(s)
D-Sub 1 x D-Sub
Connectors
DVI-D 1 x DVI
USB Intel H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) Intel H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
Graphics Specs
Graphics Type Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Max Shared Memory 1024 MB
Warranty Information
Warranty 3 Years

Product Description:-

Asus H81M-K 4th Gen Motherboard

The Asus H81M-K 4th Gen Motherboard comes with the Intel H81 chipset is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron processors. This motherboard supports Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1150 package, with iGPU, memory, and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory, and 16 PCI Express lanes. It natively supports up to two USB 3.0 ports for up to ten times faster transfer rates than USB 2.0. Moreover, the Intel® H81 chipset also supports iGPU functionality, letting users enjoy the latest Intel integrated graphics performance. ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction. The Asus H81M-K comes with 3 years of warranty.

Quick Compare

Product Details
Product Asus H81M-K 4th Gen Motherboard GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard Gigabyte GA-H110M-H Micro ATX Motherboard Gigabyte H410M S2H 10th Gen Micro ATX Motherboard
Image Asus H81M-K 4th Gen Motherboard GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard Gigabyte GA-H110M-H Micro ATX Motherboard Gigabyte H410M S2H 10th Gen Micro ATX Motherboard
Price 9,550৳ 8,900৳ 9,680৳ 8,800৳ 9,900৳ 9,000৳ 9,680৳ 8,800৳
Model H81M-K H410M H V2 GA-H110M-H Gigabyte H410M S2H
Brand Asus GIGABYTE GIGABYTE GIGABYTE
Availability In Stock In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 0 reviews.

Based on 0 reviews.

Based on 0 reviews.
Summary Product Description:-Asus H81M-K 4th Gen MotherboardThe Asus H81M-K 4th Gen Motherboard comes with the Intel H81 chipset is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron processors. This motherboard supports Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1150 package, with iGPU, memory, and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory, and 16 PCI Express lanes. It natively supports up to two USB 3.0 ports for up to ten times faster transfer rates than USB 2.0. Moreover, the Intel® H81 chipset also supports iGPU functionality, letting users enjoy the latest Intel integrated graphics performance. ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction. The Asus H81M-K comes with 3 years of warranty... Product Description: -GIGABYTE H410M H V2 10th Gen Micro ATX MotherboardThe GIGABYTE H410M H V2 10th & Gen Micro ATX Motherboard is made for Intel 10th and Generation processors. The GIGABYTE H410M H V2 Gen Motherboard has two DIMM RAM slots available which can support Bus Speeds of up to 2933MHz. The motherboard supports HDMI and D-Sub graphical output ports and can display two displays at once. The GIGABYTE motherboard also comes with 8-Channel HD Audio with High-Quality Audio Capacitors which provide crystal clear sound all around. The mother also provides you with NVMe PCIe Gen3 x4 2280 M.2 Connector, Intel GbE LAN with cFosSpeed Internet Accelerator Software, and more.CONNECTIVITYIntel GbE LAN features cFosSpeed, a network traffic management application that helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.NVMe PCIe Gen3 x4 2280 M.2 ConnectorGIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.COOLINGWith Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature, all of it can be customized to your liking.AUDIO GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high-resolution and high-fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level... Product Description:-Gigabyte GA-H110M-H Micro ATX ultra durable motherboard has the compatibility with 7th/6th i3, i5 & i7 processors. This board also supports dual channel DDR4 maximum 32GB memory and dual Ultra-Fast SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920x1200@60 Hz for D-Sub and 4096x2160@24 Hz for HDMI port. This basic motherboard has the facility of Audio Noise Guard with High Quality Audio Capacitors and Realtek® GbE LAN with cFosSpeed Internet Accelerator Software. This board also contain All new GIGABYTE™ APP Center for simple and easy use and support Intel® Small Business Basics.Buy quality Gigabyte boards within the budget available at best price at Star Tech. We provide the best quality service for online shopping and spot purchase to have your desired item to build your dream PC being anywhere in Bangladesh... Product Description: -Gigabyte H410M S2H 10th Gen Micro ATX Motherboard Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, but 5 more hybrid fan headers that support both PWM and Voltage mode fans have also been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking. GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes. There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuits and system malfunction caused by humid and damp conditions. GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance. The BIOS is essential for users during the initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system...

Write a review

Note: HTML is not translated!
Bad Good

What is the price of Asus H81M-K 4th Gen Motherboard in Bangladesh?

The latest price of Asus H81M-K 4th Gen Motherboard in Bangladesh is 8,900৳ . You can buy the Asus H81M-K 4th Gen Motherboard at best price from our website or visit any of our showrooms. Follow us on Facebook For Regular updates & Offer.
