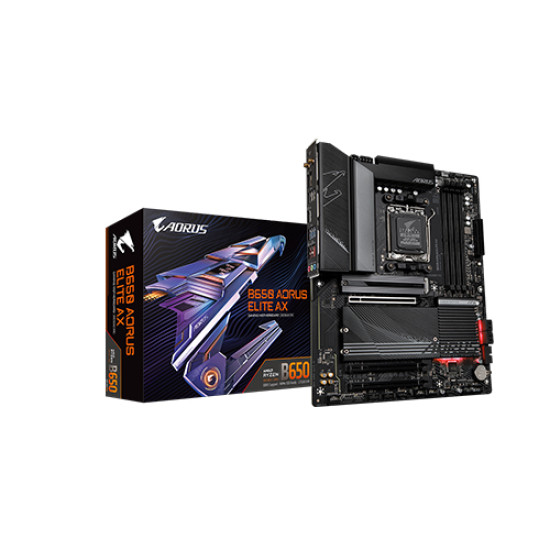

GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard

GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
-10 %
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
EMI starts at 11,512৳/month. View all 29 banks EMI plans >
33,500৳
37,050৳
Ex Tax: 33,500৳

Features

    • Model: B650 AORUS ELITE AX
    • Supported CPU: Ryzen 7000 Series Processors for Socket AM5
    • Supported RAM: 4x DDR5, up to 128GB, 6666(OC)
    • Graphics Output: 1x Display Port, 1 x HDMI
    • Features: Realtek 2.5GbE LAN & AMD Wi-Fi 6E

Specification
Basic Information
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Chipset AMD B650
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Ports & slots
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Expansion Slots
PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Memory Spec
Slots 4 DIMMs
Type DDR5
Supported Memory 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB
Others
Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Connectivity
Audio Jack 3 x Audio jacks
HDMI 1x HDMI
USB CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel
Display Port 1 x DisplayPorts
LAN Port Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors
Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics Specs
Graphics Type Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
Warranty Information
Warranty 3 Years

Product Description:-

GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard

The GIGABYTE B650 AORUS ELITE AX Motherboard supports AMD Ryzen 7000-series processors for socket AM5. It equips the best VRM design ever built with the highest quality components and comes with direct 12+2+1 Phases Digital VRM Solution. It offers advanced thermal heatsinks to improve thermal efficiency with better airflow and heat exchange. It comes with 2x PCIe 4.0 x4 M.2 Connectors. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. This motherboard features 2X copper PCBs design effectively lowering the component temperature through its high thermal conductivity and low impedance. The Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintains its performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The GIGABYTE B650 AORUS ELITE AX Motherboard comes with 2.5G LAN which provides up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking. It also supports Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet. The USB 3.2 Gen 2 ports provide speeds up to 10Gbps. With twice the bandwidth compared to its previous generation, The GIGABYTE B650 AORUS ELITE AX Motherboard comes with 3 years of warranty.
